High Precision Rotor Balancing Machine

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. mainly produces: universal joint drive balancing machine, belt drive balancing machine, single-plane vertical balancing machine, cross-flow fan balancing machine, drive shaft balancing machine, self-driven balancing machine and auto-positioning balancing machine, double-plane axial flow balancing machine, soft bearing balancing machine, automatic balancing machine, etc. 12 series and more than 40 models.mainly include: micro motor rotor balancing machine, motor rotor balancing machine, motor balancing machine, etc.

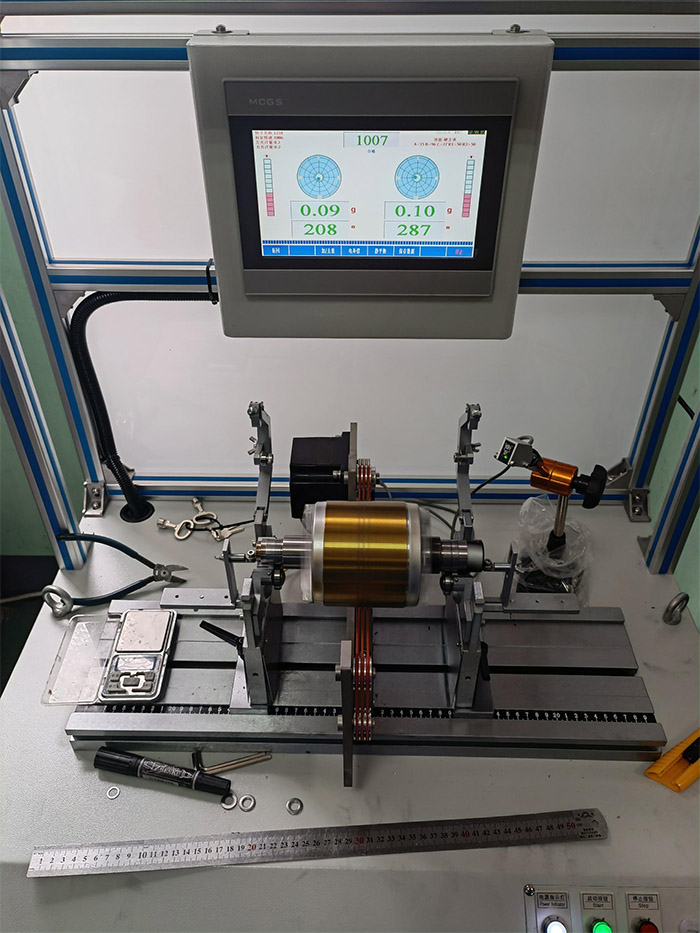

The hard-bearing auto-positioning balancing machine is specially developed for the dynamic unbalance test of the small rotors. With its extremely high sensitivity and convenient operation, it is well received by the majority of users.

Hard-bearing brackets system

High sensitivity sensor

Belt drive

Auto-positioning function

Panasonic servo motor

Kunluntongtai 10-inch HMI

Win CE operating system

100 rotor parameters

1 million historical measurement records

Single/double/dynamic and static balance display

Bilingual in Chinese and English

Support USB data export



The auto-positioning balancing machine is suitable for mass balancing of micro-small shaft rotors such as micro-motor rotors



Features

1. The Jianping drive device can realize accurate automatic positioning

2. Automatically stop when the measurement is qualified, and automatically stop at the unbalance point when the measurement is unqualified

3. Avoid manually looking for angles, thereby improving work efficiency

4. Undercut belt drive, convenient for the loading & unloading the rotors

5. Touch screen human-machine interface, easy to operate

6. JP Jianping balancing machine measurement softwar
